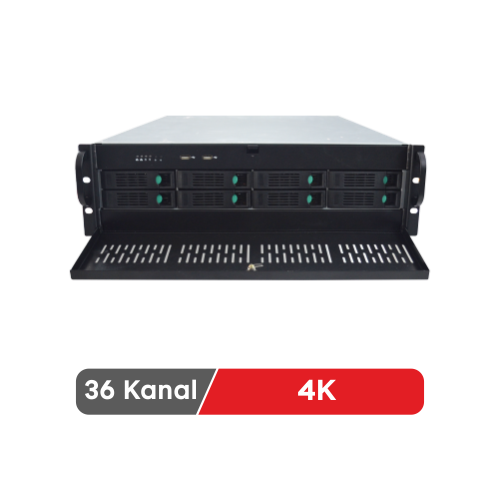

KLP 4K3136NAVI-HR8

VIDEO & AUDIO

Compression	: H.265 / H.264 / MJPEG / BYCODE(ULTRA 265-UCODE)
Operating System	: Linux OS
Video System	: NTSC / PAL
IP Camera Support	: 4K / 6MP / 5MP / 4MP / 3MP / 1080P / 2CIF / CIF / QCIF
Channel Support	: 36 * 4K IP Camera
Video Output	: 1xVGA 2xHDMI = 3840x2160 , 1920x1080 , 1280x1024
Audio In	: 1in ,1out RCA
Preview	: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
Image Processing Bandwidth	: 576 Mbps
Playback Bandwidth	: 512 Mbps
Preview Module	: Real Time / 1 Alt Akış
Frame Rate	: 1-30 Fps
Intercom	: Support.

RECORD

IP Camera Support	: 4K / 6MP / 5MP / 4MP / 3MP / 1080P / 2CIF / CIF / QCIF
Recording Mode	: Smart Analyses / Manuel / Alarm / Motion / All Time
Throughput	: 274 Mbps ( RAID10 )
Smart Detect	: Object Count , Left/Lost Object , Area Detect , Line Cross , Schene Change , Mption Detect , Video Lost , Camera Based Analyses: Face Detect , Fire Detect , Aufio Detect , VQD
Alarm In	: 16 Channel
Alarm Out	: 4 Channel
Alarm Notify	: via Mobile App

PLAYBACK

Alarm Mode	: Smart Analyses / Hour / Minute / Alarm / Moion / Full Search
Preview Module	: Normal / Forward / Backward - 16 channel
Video Player	: General Player / Media Player
Playing Speed	: 16x Forward

STORAGE

HDD Support	: 9 x SATA HDD / 1 eSATA
Storage (HDD) Capacity	: 80TB HDD
Hotswap Support	: 8 x Hotswap HDD

BACKUP

RAID	: RAID0 / RAID1 / RAID5 / RAID6 / RAID10
USB Port	: 2xUSB 2.0 / 1xUSB 3.0
Backup Format	: AVI
Backup Device	: Network / USB / USB HDD / USB DVD

SOFTWARE SUPPORT

ANR	: Support
Tour	: Channel Tour
Disc	: HDD and Dis Grouping
Channel Zero	: Support 4 Channel
Hotswap Support	: RAID0 / RAID1 / RAID5 / RAID6 / RAID10 - Hot-Swap
Network Management	: Double Ethernet and 2 Different IP Block can be managed
Zoom Support	: 25x digital zoom
Watermark	: Support.
N+M Hot Standby	: Support

PTZ

PTZ Support	: Available
RS485	: Support.

NETWORK

ONVIF	: Support
In	: RJ-45 Port ( 10 / 100 / 1000 )x2
Protocol	: TCP / IP , HTTP, HTTPS , DDNS ,IPFiltre, SMTP(SSL) , DHCP , PPPOE , UPNP , NTP , P2P, DST, NTP,, IPv6, Multicast, RTSP, RTMP
Cloud	: Support
Mobile App	: Knowledge/Knowledge Player
Mobile App	: EN
Gsm Port	: 5800
Web Port	: 80
VMS	: Knowledge VMS 128 Channel

POWER

Redundant Power

: Redudany Support

ENVIROMENTAL

Power Supply	: AC 220V
Warranty	: 2 Years Guarantee
