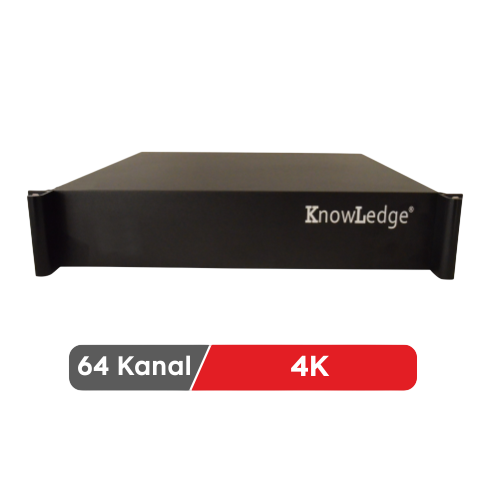

KL N4K64-8LAS 2H V1

VIDEO & AUDIO

Compression	: H.265/H.264
Operating System	: Linux OS
Video System	: NTSC / PAL
IP Camera Support	: 4K / 6MP / 5MP / 4MP / 3MP / 1080P / 2CIF / CIF / QCIF
Channel Support	: 64 * 4K IP Camera
Video Output	: 1xVGA 2xHDMI = 3840x2160 , 1920x1080 , 1280x1024
Audio In	: 1in ,1out RCA
Baud Rate	: 576 Mbps (100 Mbps RAID enabled)
Preview Module	: Real Time / 1 Alt Akış
Frame Rate	: 1-30 Fps
Intercom	: Support.
Preview	: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64
Recording Bandwidth	: 800 Mbps

RECORD

IP Camera Support	: 4K / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / 480P
Recording Mode	: Smart Analyses / Manuel / Alarm / Motion / All Time
Smart Detect	: Obje Sayma , Kayıp/Şüpheli Obje Tesbiti , Bölge Giriş Çıkış Denetimi , Sanal Kordon , Sahne Değişimi , Hareket Algılama , Video Kaybı
Alarm In	: 16 Channel
Alarm Out	: 4 Channel
Alarm Notify	: via Mobile App

PLAYBACK

Alarm Mode	: Smart Analyses / Hour / Minute / Alarm / Moion / Full Search
Preview Module	: Normal / Forward / Backward - 16 channel
Video Player	: General Player / Media Player

STORAGE

HDD Support	: 9 x SATA HDD / 1 eSATA
Storage (HDD) Capacity	: 80 TB HDD

BACKUP

RAID	: RAID0 / RAID1 / RAID5
USB Port	: 2xUSB 2.0 / 1xUSB 3.0
Backup Device	: 2xUSB 2.0

SOFTWARE SUPPORT

Tour	: Channel Tour
Disc	: HDD and Dis Grouping
Channel Zero	: Support 4 Channel
Network Management	: Double Ethernet and 2 Different IP Block can be managed
Zoom Support	: 25x digital zoom
Watermark	: Support.

PTZ

PTZ Support	: Available
RS485	: Support.

NETWORK

ONVIF	: Support.
In	: RJ-45 Port ( 10 / 100 / 1000 )x2
Protocol	: TCP / IP , HTTP , DDNS , SMTP(SSL) , DHCP , PPPOE , UPNP , NTP , P2P
Cloud	: Support
Mobile App	: Knowledge/Knowledge Player
Mobile App	: EN
Gsm Port	: 5800
Web Port	: 80
VMS	: Knowledge VMS 128 Channel

ENVIROMENTAL

Weight	: 7.4Kg (HDD Hariç)
Power Supply	: AC 220V
Power Consemption	: Max 250watt with HDD
