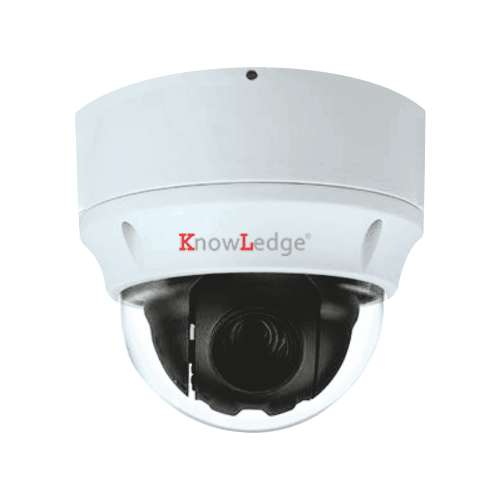

KL H2M 14X DP

IR DISTANCE

IR Filter	: Mechanic IR-CUT Filter
Night Vision	: 30 Meter

CAMERA MODULE

Min. illumination	: 0.0001 Lux @f1.2 (Color) / 0 Lux IR Open(Black-White)
Effective Pixels	: 1920(H)X1080(V) 1080P
Sensor	: Proggressive Scan Starvis CMOS Sensor
Zoom Speed	: 3s (Wide Angle)
Focus Mode	: Auto / Manuel / Semi-Auto
Fan	: Fan/Heater(Optional)
Iris	: P-Iris(Auto)
Zoom Support	: 14x Optic Zoom

VIDEO & RECORD

Compression	: H.265/H.264/MJPEG
Frame Speed	: NTSC : 30 Fps / PAL : 25 Fps
Resolution	: 1920X1080 Pixels
Main Stream	: 1920X1080
Sub Strean	: D1/VGA/QVGA
Shutter	: Auto/Manuel(1/25-1/30000s)
Bandwidth	: 32Kb-8Mbps VBR/CBR

OPERATING

Day & Night	: True Day&Night / Black-White / Colour / Auto / Time Detect
BLC	: Support.
HLC	: On/Off
WDR	: TRUE WDR(120dB)
DNR	: 3D-DNR
Defog	: On/Off
Monitoring	: Bps-Fps/Time/CameraName
AGC(Automatic Gain Control)	: 55dB
Privacy Mask	: Max 8 Area
AWbalance	: WB Auto
Motion Detection	: Max 4 Area
ROI	: 4 Area
Audio Format	: G.711U
Conference	: Support.
Alarm Trigger	: Smart Analyses/Motion/Video Tamper/Video Loss/ Network Disconnect/Alarm In
Audio Bitrate	: 64Kbps
Pan Range	: 360 Endless
Tilt Range	: 0-90 Degrees
Preset	: 256 Preset
Cruise	: 8 group
Pattern	: 4 group
Scan	: 1 group
Lineer Scan	: Support.
Power Off Memory	: Support
PTZ Watch	: Support
3D Position	: Support.
TF Card	: 128GB Max
DIS	: On/Off
Reset Button	: Support.
Alarm Notify	: FTP/Email/Browser
Audio Support	: 1x Audio in

SMART ANALYSES

Smart Analyses

: Line Crossing, Area Detect, Lost Object, Left Obect, Target Count

NETWORK

Ethernet	: RJ45(10/100T-BASE)
IP Protocol	: IPv4 - IPV6
Protocols	: TCP/IP,RTSP,HTTP,HTTPS,DNS,DDNS,DHCP,SMTP,FTP,NTP,PPPOE,SNMP,UPNP,Unicast, Multicast
ONVIF	: Support.
Web Interface	: Win XP/Vista/7/8/10 Desteklenen Tarayıcı IE 7.0 +
Language	: Turkish/English
Monitoring Software	: 128 Channel VMS/CMS
Mobile	: EN

ENVIROMENTAL

Operating Voltages	: DC24V-1.5Amper/ +HPOE
Enviromantal	: -50ºC +70ºC, %90 Less Humidity
Power Consemption	: 55 Watt Max
Material	: Metal Alloy
Protection Standard	: IP 65 Vandal Proof
