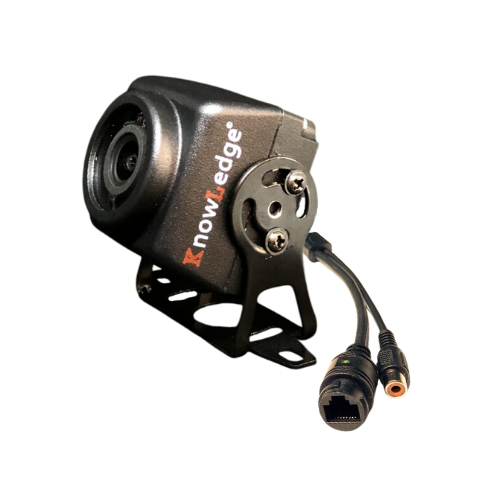

KL ARC710 IP2MPF 2.8

IR DISTANCE

IR Filter	: Mechanic IR-CUT Filter
IR Led	: 10 F5 Power Led
Night Vision	: 8 Meters

SENSOR / LENS

Min. illumination	: 0.001 Lux @f1.2 (Color) / 0 Lux IR Open(Black-White)
Effective Pixels	: 1920(H)X1080(V) 1080P
Lens	: 2.8 mm
Zoom/Focus	: Fixed
Lens Focus Point	: F 1.2
Sensor	: 1/3.0" Low Illumination Proggressive Scan CMOS Görüntü Sensörü

VIDEO & RECORD

Compression	: H.265+ / H.265 / H.264
Frame Speed	: 1-25fps@2mp (Ayarlanabilir)
Resolution	: 2mp-1920x1080
Sub Strean	: D1/VGA/QVGA/CIF
Quality	: Bes/Better/Normal/Bad/Worst
BLC	: Var - (Açık/Kapalı)
HLC	: Var - (Açık/Kapalı)
Video Setting	: Support
Mirror	: Available

OPERATING

Day & Night	: True Day&Night / Black-White / Colour / Auto / Time Detect
Dinamik Aralığı (WDR)	: Var - 120db
DNR	: 3D-DNR
Defog	: On/Off
Monitoring	: Bps-Fps/Time/CameraName
AGC(Automatic Gain Control)	: Var (Otomatik)
Privacy Mask	: Support.
Audio Format	: G.711U / G.711A
Alarm Trigger	: Hareket Algılama/Görüntü Bloke/Sabotaj/Ağ Hatası
Audio In	: 1xMikrofon Girişi
AWB (Beyaz Dengesi)	: WB Auto
Watermark	: Var (Kamera Başlığı)

NETWORK

IP Protocol	: IPv4
Protocols	: TCP/IP , IPv4 ,DHCP , NTP , DNS ,HTTP, HTTPS, RTSP, UDP/UNICAST, MULTICAST, TELNET
Web Interface	: Windows 7/8/10/11
Language	: Turkish/English
Monitoring Software	: KLP MMYY / VMS
RJ45 Ethernet Port	: RJ45(10/100T-BASE)

ENVIROMENTAL

Operating Voltages	: DC 12V-24V (MNVR Üzerinden)- Araç Elektrik Sistemleri ile Uyumlu
Material	: Alüminyum Alaşım Kasa
Koruma Standardı	: IK08 Darbe Dayanımı
Operating temperature	: -40ºC +80ºC
Humidity	: %10 ~ %95
Protection Standard	: IP 65 (EN 60529)

WARRANTY

Origin	: Türkiye
Warranty	: 2 Years Guarantee
Uygunluk Beyanı	: CE
